Master clocks & GPS units
Product No. Product Description Product Information Country of Origin

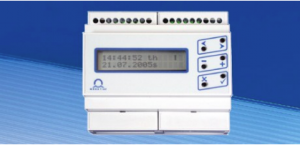

HN-60i Mini master clock with 1 impulse line

( 1 minute, ½ minute & second )
Outputs: 1 impulse line, 12 or 24 V / 150 mA with overload detection Max. 6 x SEI 40 or 16 x NU 90 / 91 1 program. switching output 250 VAC / 6 A DC-Output 24 V / max. 200 mA, (school bells, GPS 4500) and 14 VDC (recharge. batteries)
Display: LCD, 2×16 characters
Operation: 6 pushbuttons, USB port
Synchronization: DCF, MSF, WWVB, GPS (GPS 4500)
Time base: Software trimmed quartz (accuracy: +/- 0.1 sec / 24h)
Daylight saving time: Through DCF or calculated based on standard time zone table
Case: Plastic, for wall and DIN bar mounting
Degree of protection: IP 20
Dimensions: Width x Height x Depth = 106 x 90 x 58 mm, 6M
Weight: 0,6 kg
Power supply: 230 V +/- 10 %, 50 – 60 Hz or 24 VDC +/- 10 %
Working temperature: -30°C to +70°C
Switzerland
HN-61 GPS time setting. The same as the HN-60 specification
Specification: See HN 60 230 above
Synchronization: integrated GPS receiver (SMA connector), mouse antenna with 5m cable included
Power supply: 230 V +/- 10 %, 50 – 60 Hz or 24 VDC +/- 10 %
Working temperature: -30°C to +70°C
Switzerland
HN 6x IP 54



 IP 40 case for mini master HN-60/61
Case: Plastic, for indoor wall mounting
Degree of protection: IP 40
Dimensions: Width x Height x Depth = 146 x 180 x 82 mm
Weight: 0.900 kg including HN 6x
Switzerland

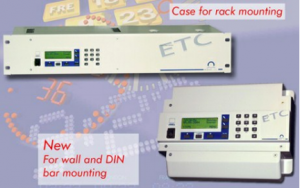

ETC-12

ETC- 12R

 Wall mounted

Rack mounted

 Master clock with 1 impulse line output and 2 programmable relays channels

Impulse line (polarized, 24 V / 500 mA), programmable for 1-minute, 1/2- minute, 1-second or DCF time-code output. 2 programmable relay channels with switch-over contacts (230VAC / 10A). Menu guided, self-explaining operation control, alpha-numeric LC-Display with backlight. Input for DCF 450 or GPS 3148 time code receiver. Automatic daylight-saving time change. 80 time-zone definitions. Each in- and output can be assigned to a particular time zone (i.e. UTC and local time).



 Switzerland
ETC 14

ETC 14R

 Wall mounted

Rack mounted

 Master clock with 1 Impulse / MOBALine output and 4 programmable relays channels

Line output configurable as impulse-line (polarized, 24 V / 700 mA) or MOBALine (500 mAeff). Impulse-line programmable for 1-minute, 1/2- minute, 1-second or DCF time-code output. 4 programmable relay channels with switch-over contacts (230VAC / 10A). Menu guided, self-explaining operation control, alpha-numeric LC-Display with backlight. Input for DCF 450 or GPS 3148 time code receiver. RS 422 serial interface (NMEA, TSIP protocol) to connect a GPS time code receiver (i.e. GPS 3048). Automatic daylight-saving time change. 80 time-zone definitions. Each in- and output can be assigned to a particulartime zone (i.e. UTC and local time). Distribution of 20 selectable local-times on MOBAline (i.e. for world time clocks with automatic daylight-saving-time changes).





 Switzerland
ETC 24

ETC 24R

 Wall mounted

Rack mounted

 Master clock with 2 Impulse / MOBALine outputs and 4 programmable relays channels

Each Line output configurable as impulse-line (polarized, 24 V / 1000 mA) or MOBALine (700 mAeff). Max. output current, both lines together: 1000mA impulse or 700mAeff MOBALine. Lines in impulse-mode programmable for 1-minute, 1/2- minute, 1-second or DCF time-code output. 4 programmable relay channels with switch-over contacts (230VAC / 10A). Menu guided, self-explaining operation control, alpha-numeric LC-Display with backlight. Input for DCF 450 or GPS 3148 time code receiver. RS 422 serial interface (NMEA, TSIP protocol) to connect a GPS time code receiver (i.e. GPS 3048). RS 232 serial interface with periodic, secondly ASCII time string output (definition IF 482). Automatic daylight-saving time change. 80 time-zone definitions. Each in- and output can be assigned to a particular time zone (i.e. UTC and local time). Distribution of 20 selectable local-times on MOBALine (i.e. for world time clocks with automatic daylight-saving-time changes).



 Switzerland
DTS 4801 Rack mounted Network Master Clock, NTP-Server, MOBALine / Impulse Master Clock, RS 485 clock line

Outputs: 1 MOBALine or Impulse slave clock line, 700mA, for up to 100 slave clocks.
RS 485 clock line for up to 31 monitored slave clocks
DCF time code output
1 Serial Interface RS 232 / 422, telegram programmable by script file
LAN services: NTP client and server, CAN protocol (MTC), SNMP traps, alarm by email
Operation: Via LAN (Telnet) or serial interface RS 232
Control: LED’s: power, synchronization, alarm, communication on LAN
Display for status and alarm signaling. Push button for display change
Synchronization: DCF, GPS (3148, 4500), LAN
Case: Metallic rack mounting, like IT devices
Dimensions: height x width x depth in mm: 44 (1 HU) x 483 (19″) x 120 mm.
Power supply: 85-250 VAC, 50/60 Hz or 22-30 VDC, < 15 VA, dual possible
Switzerland
DTS 4802 Rack Mounted Network Master Clock, NTP-Server, 2 x MOBALine / Impulse Master Clock

Outputs: 2 MOBALine or Impulse slave clock lines for totally 700mA, for totally up to
100 slave clocks.
DCF time code output
1 Serial Interface RS 232 / 422, telegram programmable by script file
LAN services: NTP client and server, CAN protocol (MTC), SNMP traps, alarm by email
Operation: Via LAN (Telnet) or serial interface RS 232
Control: LED’s: power, synchronization, alarm, communication on LAN
Display for status and alarm signaling. Push button for display change
Synchronization: DCF, GPS (3148, 4500), LAN
Case: Metallic rack mounting, like IT devices
Dimensions: height x width x depth in mm: 44 (1 HU) x 483 (19″) x 120 mm.
Power supply: 85-250 VAC, 50/60 Hz or 22-30 VDC, < 15 VA





 Switzerland
DTS 4806 Rack mounted Network Master Clock, NTP-Server, MOBALine / Impulse Master Clock

Outputs: 6 Lines MOBALine / Impulse / DCF_active
MOBALine: 700 mA per line
Impulse, DCF_active: 1000 mA per line, 24 V
DCF / Pulse output, current loop
Serial Interface RS 232, script file programmable output
LAN services: NTP client and server, SNMP traps, alarm by email
Operation: Via LAN (Telnet or MOBA-NMS) or serial interface RS 232
Control: LED’s: power, synchronization, alarm, communication on LAN
Display for status and alarm signaling. Push button for display change
Synchronization: DCF, GPS (GPS 4500 or GNSS 3000), LAN
Case: Metallic rack mounting, like IT devices
Dimensions: height x width x depth in mm: 44 (1 HU) x 483 (19″) x 240 mm.
Power supply: 90-240 VAC, 50/60 Hz, < 200 VA, typ. 2.2 A @110 VAC
or 24 – 72 VDC, 175 W @24VDC, dual possible

Switzerland
DTS 4020 Timebridge

Basic device with 1 x DC power supply.



 Rack Mounted Distributed Time System 4020.timebridge with TCXO: PTP Slave and NTP-Time Server

Synchronization Outputs: – 1 x analog output (BNC), 50 Ohms: IRIG-B modulated or 10MHz sinus
Basic device with – 2 x digital outputs:(BNC): Precision pulse, frequency or IRIG-B unmodulated
1 x DC power supply – 2 x Ethernet LAN 100/1000: RJ45
– 1 x ToD (Time of Day) (RJ45 spec.), serial interface (CCSA) + 1PPS
LAN services: NTP V4 server, SNMP V2c / V3 (Get, Put and traps)
PTP Slave (E2E, P2P, 1-step, 2-step, Unicast, Mutlicast, Layer 2, IPv4/IPv6)
NTP requests: >10”000 req / sec per device
Operation: Serial (micro USB, PC terminal), via LAN (SSH) or SNMP (MOBA-NMS)
Control: LEDs: power, synchronization, alarm, communication on LAN
Synchronization Input: PTP Slave (E2E, P2P, 1-step, 2-step, Unicast, Mutlicast, Layer 2, IPv4/IPv6)
PTP profiles: Default, E2E, P2P, G.8275.1, G.8275.2
Sync-E (Synchronous Ethernet)
Frequency 10 MHz / 1 PPS
Accuracy (free run): < +/- 1ms / day (< 0.01 pps)
Alarm: e-mail, SNMP notification, alarm LED, 1 relay with break contact
Oscillator: TCXO
Case: Metallic table case, Option: rack mounting brackets or DIN rail mounting
Dimensions: Width x Height x Deep in mm: 221 x 43 x 252 mm
Power supply: 1 x 24 – 60 VDC, < 30 VA
Switzerland
Tempus II Wall mounted 1 x 24 V polarized impuls this output supplys 0.25A. and secured agnist shortcircuite. Slave clocks

1 x 3 wire 240 v slave tower clock




Tempus II E Wall mounted Same as above with 2 FET outputs for bell hammers max 1 A
Tempus II & E-CSD Wall mounted With GPS time setting
Master clocks TEMPORA III Wall mounted Command table: to ensure easy operation, the touch screen command table shows the real bell configuration of the tower and its real time activity. The ongoing bell ringing events are shown on the bell symbols and also by displaying their sequence names.

Function keys: the installer provides an end-user menu composed of up to 66 custom-made keys that are chosen according to local ringing traditions. Diary function key: when pressed, the next upcoming automatic bell executions are listed in chronological order and may be edited. capable to control up to 4 tower clock movements independently.
