Large Clock Movements from 50cm dials upwards and Hands

Large outdoor clocks with hands protected behind glass.

Order number

Dial diameter

Hands

Information

Origin

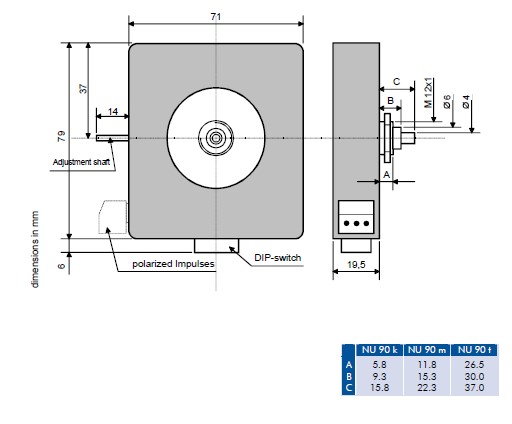

Nu-91K

50 – 80 cm

Hour & minutes

Slave movement for minute-impulses for in- and outdoor clocks, shaft length 15,8 mm, 24 V

for dial diameters up to 80 cm, with central nut fixing, for dial thickness up to 3,5 mm, for polarized minute pulses, low noise, hand setting from behind, with reversible polarity plug. Pulse voltage 24 V.

Switzerland

Nu-91M

50 – 60 cm

Hour & minute

Slave movement for minute-impulses for in- and outdoor clocks, shaft length 22.3 mm, 24 V

Switzerland

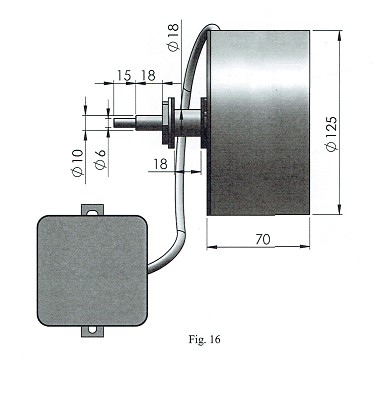

CO1221DR

80 – 90 cm

Hour & minute

Slave movement for minute-impulses for in- and outdoor clocks, shaft length 34 mm, for dial thickness up to 15 mm, power supply240 Vac

Europe

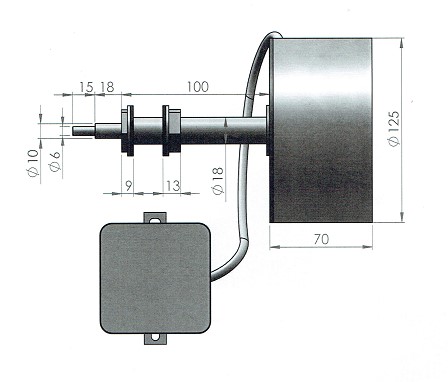

CO1221DIO

80 – 90cm

Hour & minute

Slave movement for minute-impulses for in- and outdoor clocks, shaft length 151 mm 240 Vac, for dial thickness up to 18 mm,

Europe

Large outdoor clocks with hands protected behind glass.

MOTOR MOVEMENTS FOR IMPULSE CONTROLLED FACADE CLOCKS. Exposed hands.

DMU-140

80-140 cm

Hour & minute

Self-setting motor-movement for GPS, DCF, MSF, MOBALine and serial RS 485 reception, (only with cover glass)

use with dial diameters 80 to 140 cm, central mounting, for dial thickness up to 20 mm. Shaft length 45 mm.

Power supply: 10 – 30 VDC or MOBALine only, < 1.5 VA (< 60 mA @ 24 VDC)

Synchronisation: – GPS (GPS 4500, DCF-UTC, current loop active) – DCF-77 / MSF radio time signal- MOBALine (local time)- RS 485 (supervised mode with MB-RS485-protocol or synch. only with IF 482 tel.)

Automatic time take-over and daylight-saving time change-over by means of a connected radio signal receiver. Automatic calculation of the local time (from UTC), selectable from 56 time zones. Time keeping with internal quartz clock for at least 10 hours.

Switzerland

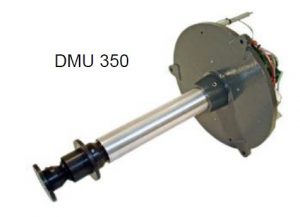

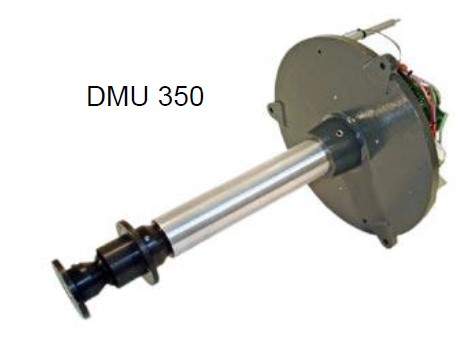

DMU 350

140 – 350 cm

Self-setting motor-movement for GPS, DCF, MSF, MOBALine and serial RS 485 reception, (only with cover glass)

for dial diameters of up to 350 cm, for surface mounting, shaft length for wall thickness M of up to 600 mm.

Power supply: 10 – 30 VDC or MOBALine only, < 1.5 VA (< 60 mA @ 24 VDC)

Switzerland

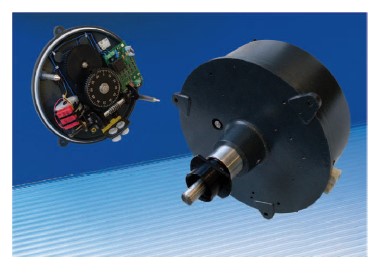

MW-10 e-mem	1 m – 3.50 m	Hour & minutes	With electronic impulse memory for automatic time correction after mains power failures. For facade clocks, for dial diameters of up to 350 cm, surface or flush mounting, (front mounting with a mounting plate “accessory”), shaft length for wall thickness M of up to 600 mm, for polarized minute pulses. Pulse voltage 24 – 60 V, motor supply 230 V / 50 Hz.	Switzerland

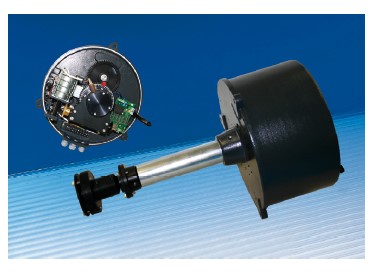

MWS-10-e-mem	1 m – 3.5 m	Hour minutes & seconds	With electronic impulse memory for automatic time correction after mains power failures. For facade clocks, for dial diameters of up to 350 cm, surface, or flush mounting, (front mounting with a mounting plate „accessory “), shaft length for wall thickness M of up to 600 mm, for polarized minute pulses. Pulse voltage 24 – 60 V, motor supply 230 V / 50 Hz.	Switzerland

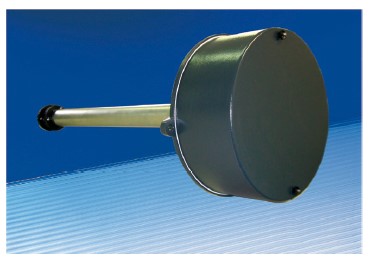

MW-20-e-mem	3.5 m – 5 m	Hour & minutes	With electronic impulse memory for automatic time correction after mains power failures. For facade clocks, for dial diameters of up to 350 cm, surface, or flush mounting, (front mounting with a mounting plate „accessory “), shaft length for wall thickness M of up to 600 mm, for polarized minute pulses. Pulse voltage 24 – 60 V, motor supply 230 V / 50 Hz.	Switzerland
MWS-20-e-mem	3.5 m – 5 m	Hour minutes & seconds	With electronic impulse memory for automatic time correction after mains power failures. For facade clocks, for dial diameters of up to 350 cm, surface, or flush mounting, (front mounting with a mounting plate „accessory “), shaft length for wall thickness M of up to 600 mm, for polarized minute pulses. Pulse voltage 24 – 60 V, motor supply 230 V / 50 Hz.	Switzerland

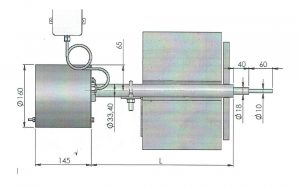

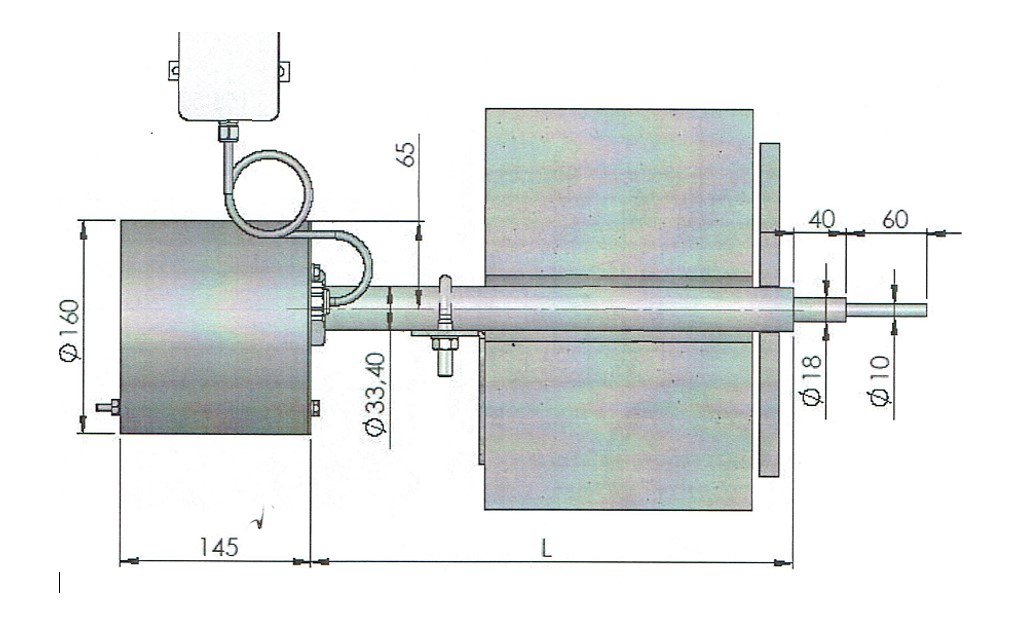

CO126110	1.25 – 2 m	Hour & minute	Slave movement for minute-impulses for outdoor clocks with exposed hands, wall thickness up to 250 mm 240 Vac ,	Europe
CO126135	1.25 – 2 m	Hour & minute	Slave movement for minute-impulses for outdoor clocks with exposed hands, wall thickness up to 650 mm 240 Vac	Europe

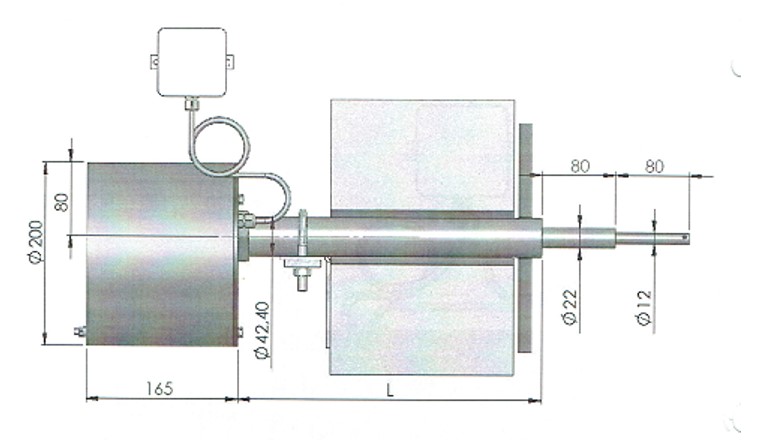

CO126130M	2 – 2.3 m	Hour & minute	Slave movement for minute-impulses with metal wheels for outdoor clocks with exposed hands, wall thickness up to 300 mm 240 Vac	Europe
CO126160M	2 – 2.3 m	Hour & minute	Slave movement for minute-impulses for outdoor clocks with exposed hands, wall thickness up to 900 mm 240 Vac	Europe

Accessories

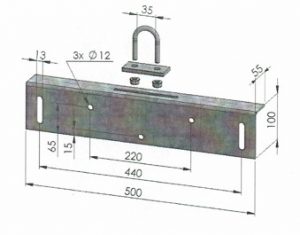

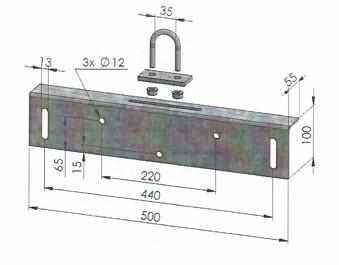

CO1460B50	Wall fixing for gear movement with built in slave motors. Length 500 mm dials up to 2 metre	Europe

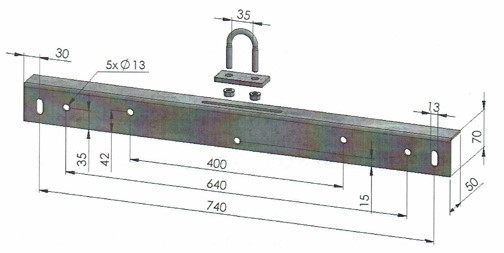

CO1460B80	Wall fixing for gear movement with built in slave motors. Length 800 mm dials up to 2 metre	Europe

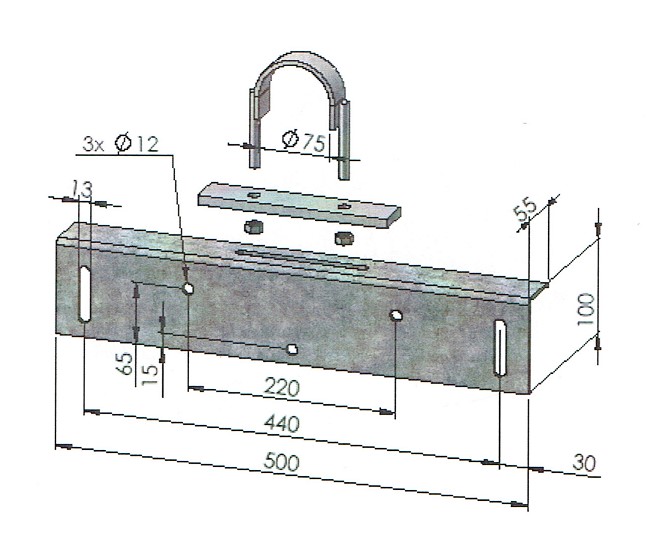

CO1480B50	Wall fixing for gear movement with built in slave motors. Length 500 mm dials over 2 metre and up to 4 metres	Europe

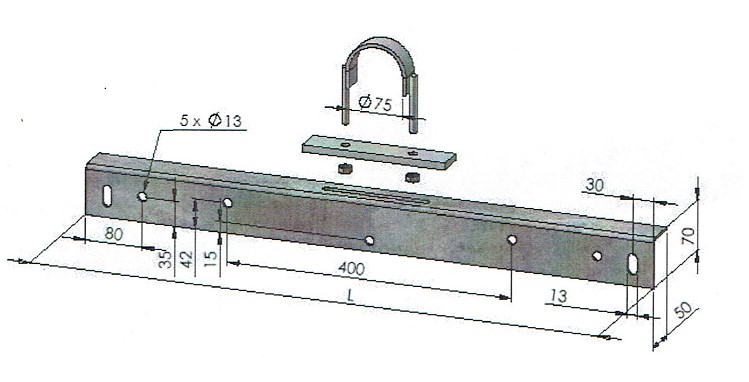

CO1470B80	Wall fixing for gear movement with built in slave motors. Length 800 mm dials over 2 metre and up to 4 metres.	Europe

Hands

Hands suitable for indoor/outdoor clocks with glass enclosed fronts

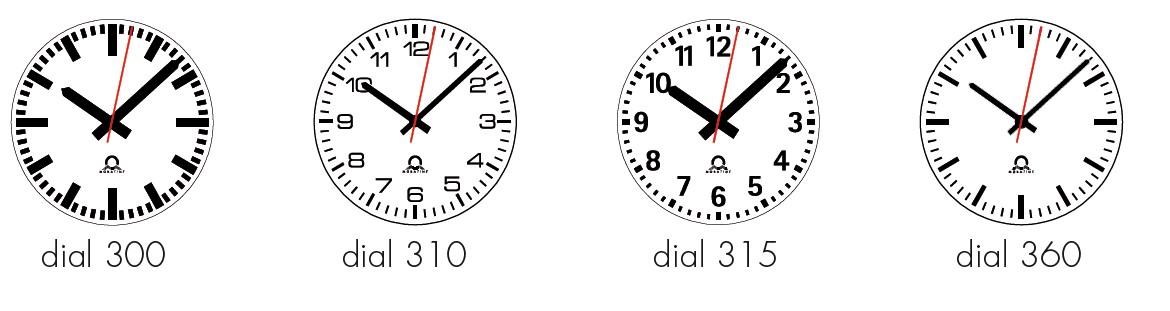

Mn91K & Mu91M DIAL HANDS
Hour, minute & second	25Ø	ZB300	ZB310		ZB360
Hour, minute & second	30Ø	ZB300	ZB310		ZB360
Hour, minute & second	40Ø	ZB300	ZB310	ZB315	ZB360
Hour, minute & second	50Ø	ZB300	ZB310	ZB315	ZB360
Hour, minute & second	60Ø	ZB300		ZB315
Hour, minute & second	80Ø	ZB300		ZB315

Outdoor Black Hands to suit movements below

No. 21	No. 22	No. 23	No. 24	No. 25


No. 26	No. 27	No. 28	No. 29	No. 30

Hands suitable for indoor/outdoor clocks with glass enclosed fronts
	DIAL	MOVEMENTS	MOVEMENTS	HANDS
Hour, minute	50Ø	CO1221DR	CO1221D10	#21	TO	#30
Hour, minute	60Ø	CO1221DR	CO1221D10	#21	TO	#30
Hour, minute	70Ø	CO1221DR	CO1221D10	#21	TO	#30
Hour, minute	80Ø	CO1221DR	CO1221D10	#21	TO	#30
Hour, minute	90Ø	CO1221DR	CO1221D10	#21	TO	#30

Hands suitable for outdoor clocks with exposed hands
	DIAL	MOVEMENTS	MOVEMENTS	MOVEMENTS	MOVEMENTS	HANDS
Hour, minute	1 meter	CO16610	CO12635	CO126130M	CO126160M	#21 to # 30
Hour, minute	1.5 metres	CO16610	CO12635	CO126130M	CO126160M	#21 to # 30
Hour, minute	2 metres	CO16610	CO12635	CO126130M	CO126160M	#12 to # 30
Hour, minute	2.3 metres	CO16610	CO12635	CO126130M	CO126160M	#12 to # 30

Facade clocks with illumination hands

MW 24 e-mem	Dial diameter For facade clocks, for dial diameters of up to 500 cm, with LED-illumination	hands hour / minute and second. wall thickness M of up to 800 mm Specify wall thickness (mm) when ordering!	Motor-slave-movement for illuminated clock With electronic impulse memory for automatic time correction after mains power failures for polarized minute pulses. Pulse voltage 24 – 60 V, motor supply 230 V / 50 Hz.	Switzerland
MWS 24 e-mem	Dial diameter For facade clocks, for dial diameters of up to 500 cm, with LED-illumination,	hands hour / minute and second. wall thickness M of up to 800 mm Specify wall thickness (mm) when ordering!	Motor-slave-movement for illuminated clock With electronic impulse memory for automatic time correction after mains power failures for polarized minute pulses. Pulse voltage 24 – 60 V, motor supply 230 V / 50 Hz.	Switzerland
				Europe
CM1261LR	Up to 2 metres	Hour & minute	Slave movement for minute-impulses for outdoor clocks with illuminated exposed hands, dial thickness up to 20 mm. power supply240 Vac	Europe
CM126160M	1 meter -1.5 metres	Hour & minute	Slave movement for minute-impulses with metal wheels for outdoor clocks with illuminated exposed hands, wall thickness up to 650. mm power supply240 Vac	Europe
CM1261120M	1.5 metres- 2.3 metres	Hour & minute	Slave movement for minute-impulses with metal wheels for outdoor clocks with illuminated exposed hands, wall thickness up to 1200. mm power supply240 Vac	Europe
CM1261210M	1.5 metres- 2.3 metres	Hour & minute	Slave movement for minute-impulses with metal wheels for outdoor clocks with illuminated exposed hands, wall thickness up to 2100. mm power supply240 Vac	Europe
illuminated Hands	For all sizes	#29	Hands are made from stainless steel with LED illumination	Europe Switzerland
